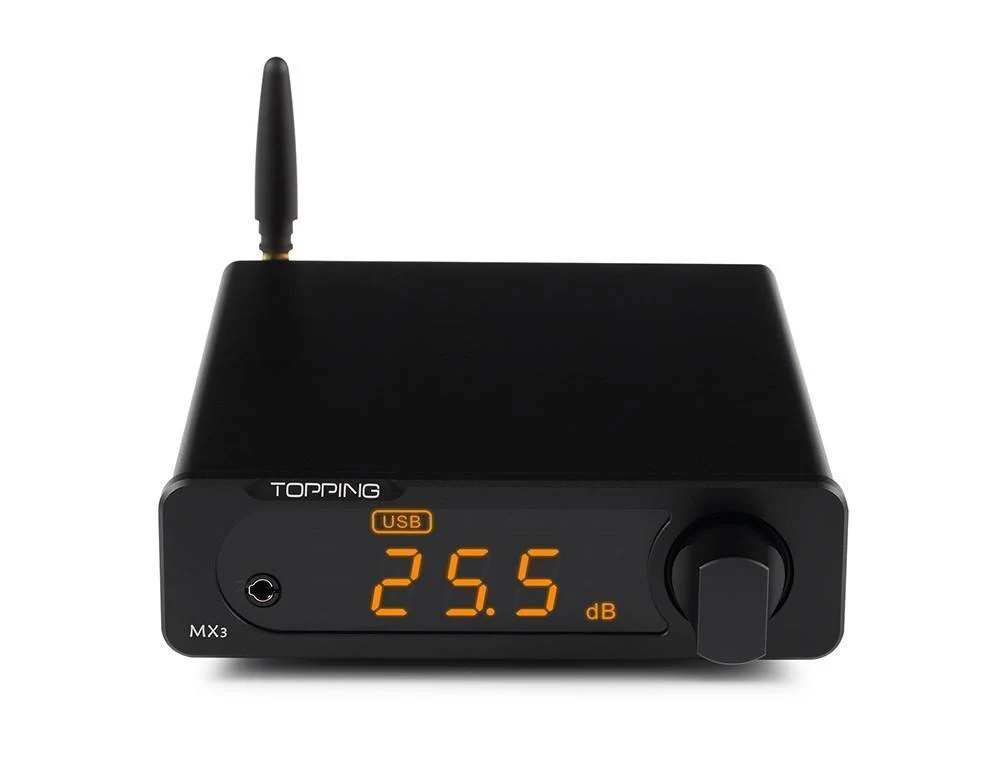

TOPPING MX3 Bluetooth DAC (Apos Certified)

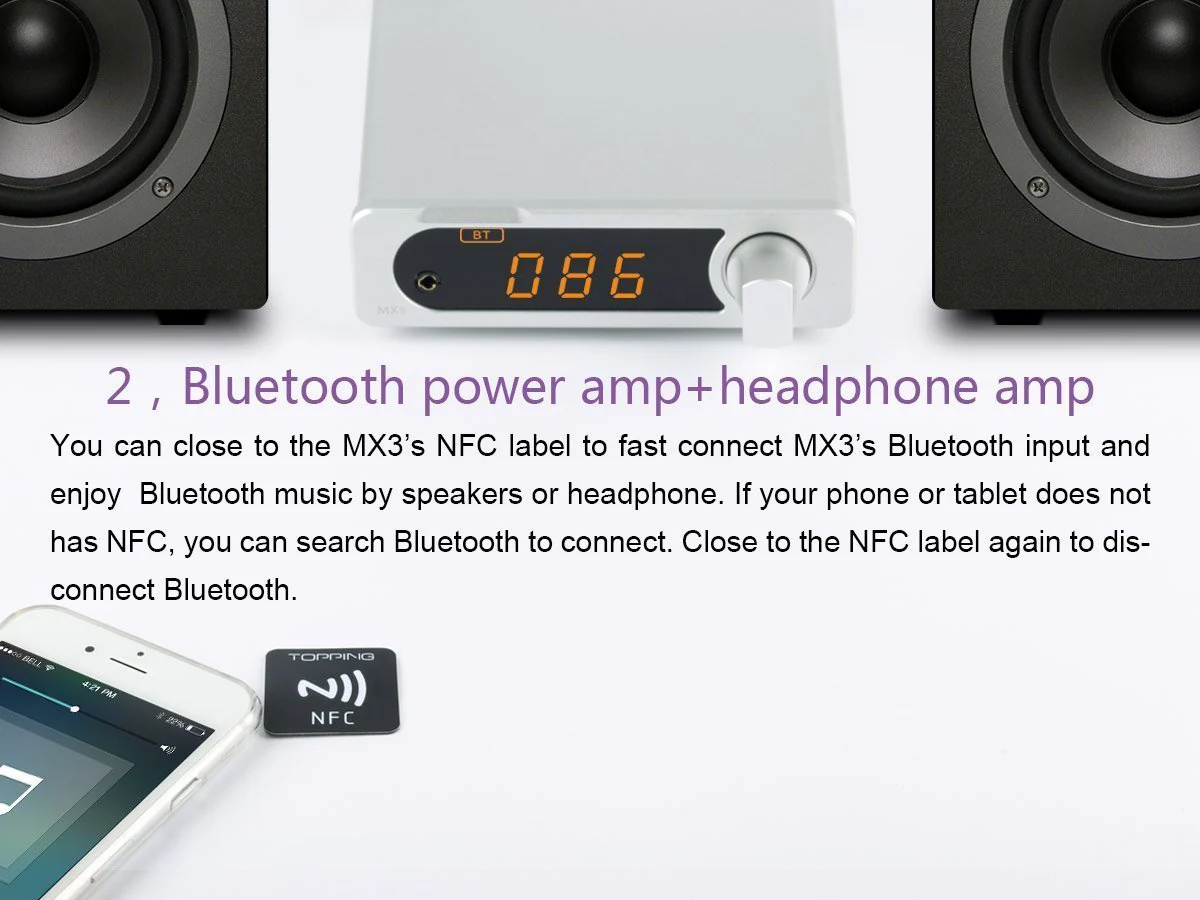

The Topping MX3 consists of a DAC, an Amp, and a bluetooth receiver that can easily power a headphone amp or a set of passive speakers. It produces 247 mW of power at 32 ohms as a headphone amp and 38 W per channel at 8 ohms for speakers. The MX3 is very versatile and can be used as a PC power amp, a headphone amp, a bluetooth amp, a bluetooth receiver, a power amp, a DAC/preamplifier, and an amp for a digital player.
Specs:
- Main
- Power Input: DC 24V/3.75A
- Signal Input: BT / USB / OPT / COAX / AUX
- Headphone Output: 1 x 3.5 mm (⅛ in)
- Speaker Output: Banana jack, BTL output
- Subwoofer Output: 1 x RCA
- Bluetooth Range: < 32.8 ft (10 m)
- Display Screen: Orange LED
- Dimensions: 7.3 x 4.8 x 1.5 in (18.5 x 12.2 x 3.8 cm)
- Weight: 16.8 oz (475 g)
- Audio: Aux In, Headphone Out
- THD+N (A-weighting): <0.006% at 1 kHz, output = 130 mW, RL = 32 ohms
- SNR (A-weighting): > 103 dB at 1 kHz
- Frequency Response: 20 Hz–200 kHz (+/- 0.1 dB)
- Output voltage: 10 Vpp
- Noise: < 18 uVrms
- Crosstalk: -93 dB at 1 kHz
- Balance: 0.05 dB
- IMD CCIF: -81 dB
- IMD SMPTE: -78 dB
- Output Impedance: <0.4 ohms
- Gain: 11.6 dB
- Output Power: 257 mW x 2 at 32 ohms, THD+N <1%; 42 mW x 2 at 300 ohms, THD+N <1%
- Suitable load Impedance: 16–300 ohms
- Audio: Aux In, Speaker Out
- THD+N (A-weighting): <0.05% at 1 kHz, output = 20 W, RL = 8 ohms
- SNR (A-weighting): >91 dB at 1 kHz
- Frequency Response: 20 Hz–20 kHz (+/- 0.8 db)
- Output Voltage: 46 Vpp
- Noise: <0.5 mVrms
- Crosstalk: -75 dB at 1 kHz
- Balance: 0.05 dB
- Output Impedance: <0.2 ohms
- Gain: 29.6 dB
- Output Power: 38W x 2 at 8 ohms, THD+N <10%, 40W x 2 at 4 ohms, THD+N <10%
- Suitable Load Impedance: 4–8 ohms
- DAC
- USB In: 44.1–96 kHz / 16–24 bit
- Opt/Coax In: 44.1–192 kHz / 16–24 bit
- Bluetooth: HFPV1.6, A2DPV1.2, AVRCPV1.4

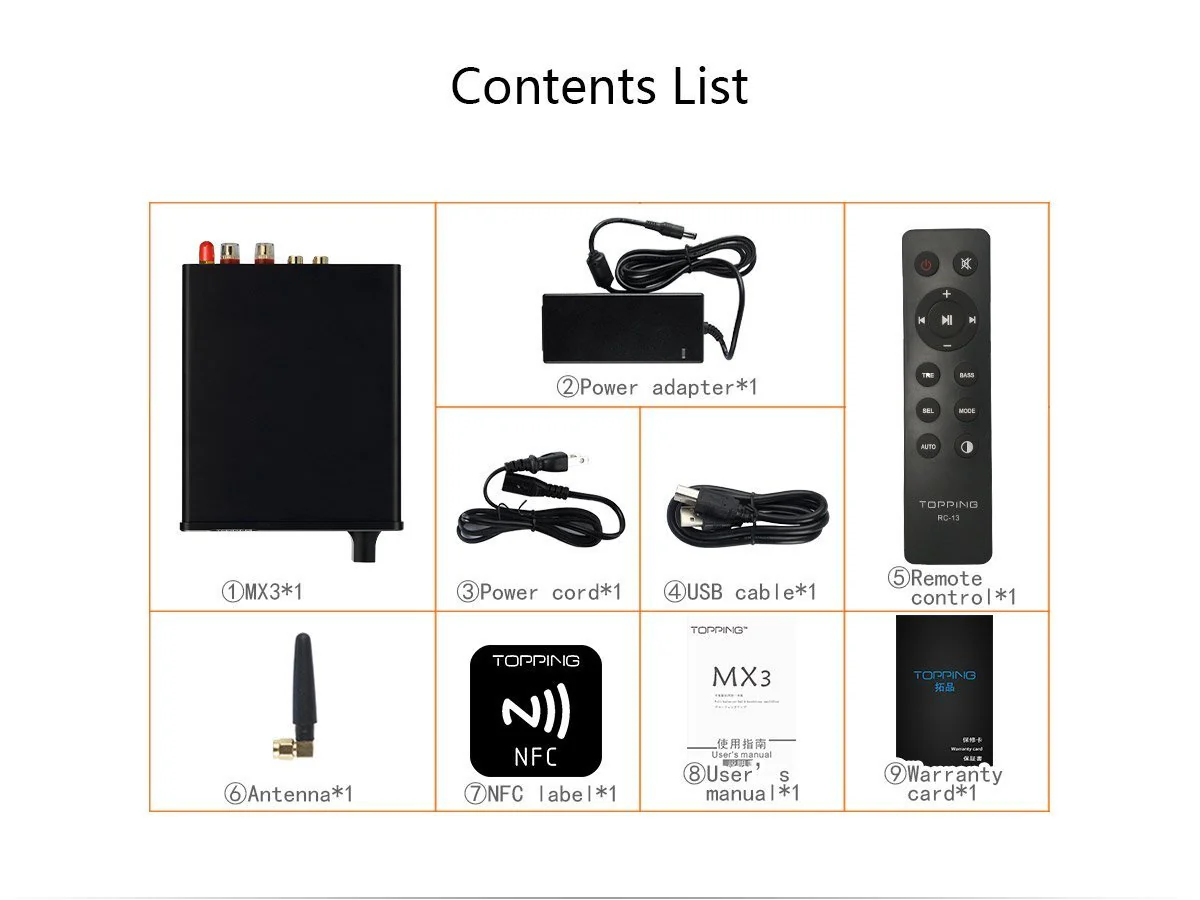

Included:
- Power adapter
- Power cord
- USB cable
- Remote control
- Antenna
- User manual
