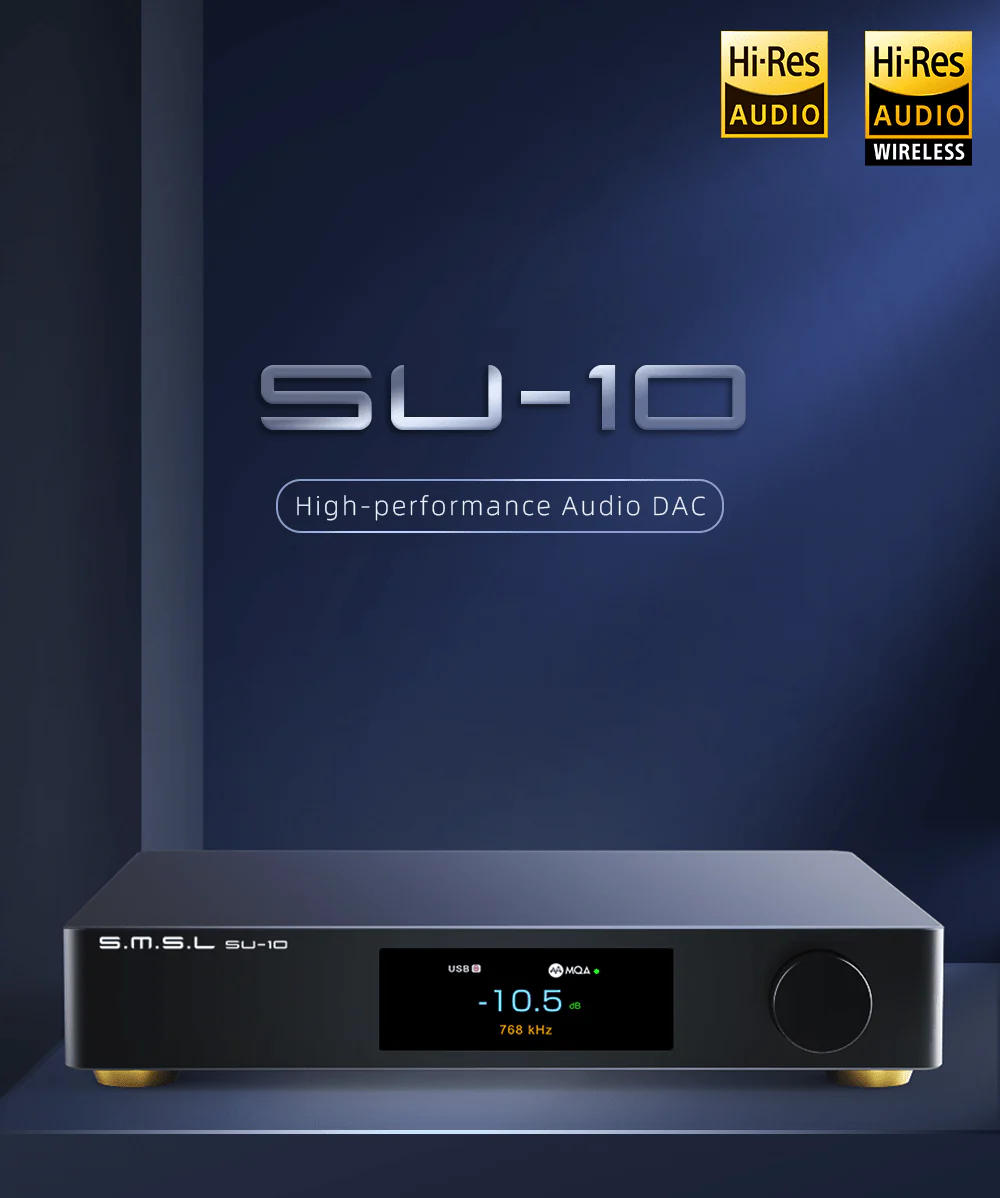

16-channel flagship Delta Sigma DAC

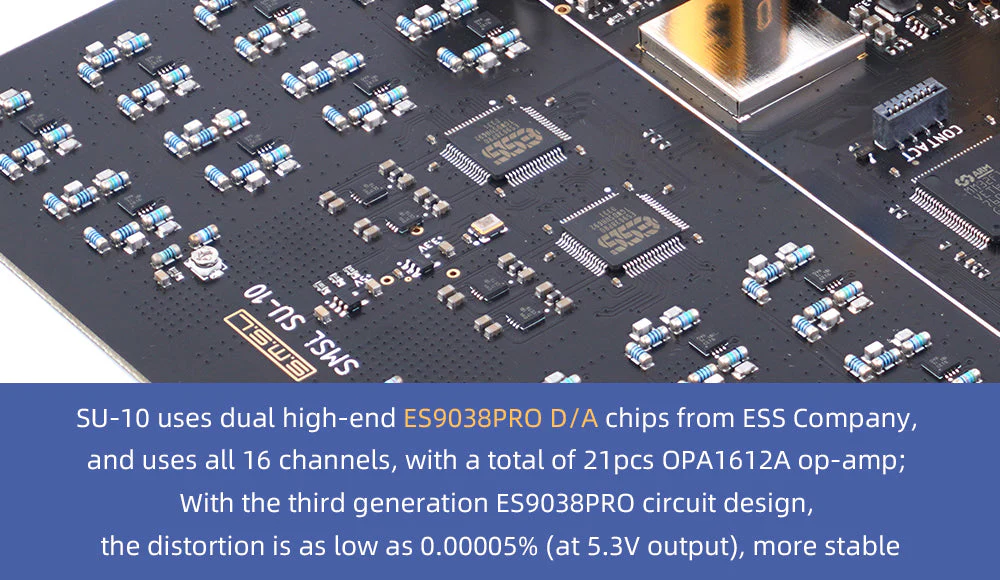

The SU-10 DAC is SMSL’s 2022 flagship Delta Sigma DAC. Utilizing two ES9038PRO DAC chips, the SU-10 boasts 16 channels and 21 op amps for an exceedingly detailed sonic experience. SMSL has designed a third generation DAC circuit for the occasion, offering an incredibly low THD+N of 0.00005%.

Dual linear power supplies

The digital and analog components are supplied by separate linear power supplies. This, accompanied with shielded, low-noise power supply processing, results in noise as low as 1uVrms.

24-bit Bluetooth

Equipped with Qualcomm’s latest Bluetooth chip, the SU-10 supports 24-bit/96kHz Bluetooth formats.

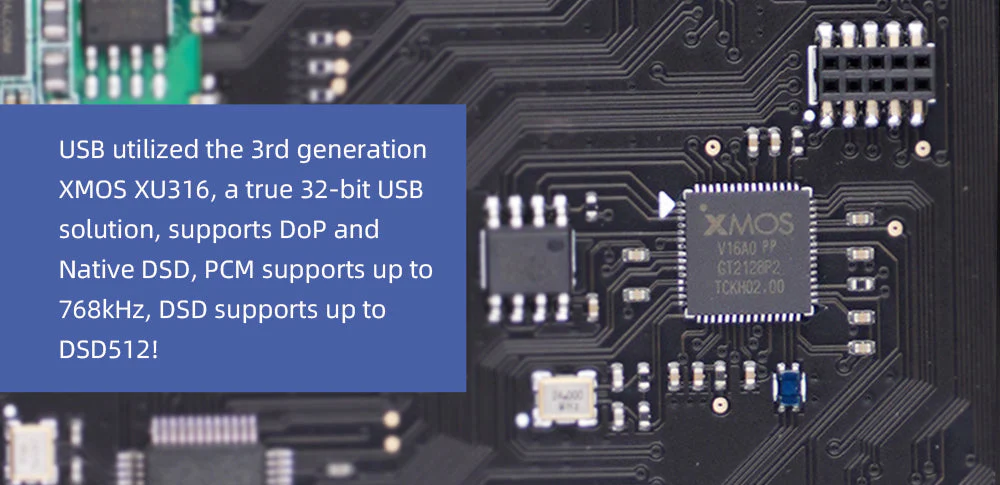

3rd Gen USB controller

A third-generation XU-316 USB controller supports 32-bit/768kHz PCM, native DSD512, and DoP.

Tempered glass display

A tempered glass display panel provides high light transmission and extremely long service life.

MQA & MQA-CD

Both USB and SPDIF inputs support MQA and MQA-CD formats, giving you more options to enjoy your library at the highest quality.

Six inputs

With inputs for USB, optical, coaxial, Bluetooth, I2S, and AES, the SU-10 supports an incredible number of sources: laptops, smart phones, TVs, gaming consoles, PCs, CD players, and more.

Product highlights

• JAS Hi-Res certified
• MQA
• MQA-CD
• Bluetooth
• Dual ESS ES9038PRO DAC chips
• 16 channel
• 21 OPA1612 dual op amps
• Two linear power supplies
• Tempered glass display
• 0.00005% THD+N
• 3rd ES9038PRO circuit design
• XMOS XU316 3rd gen USB controller
• DSD512
• PCM 32-bit/768kHz
• 7 digital filters
• Full-featured remote control
• CNC milled aluminum alloy shell
• Gold-plated input and output jacks

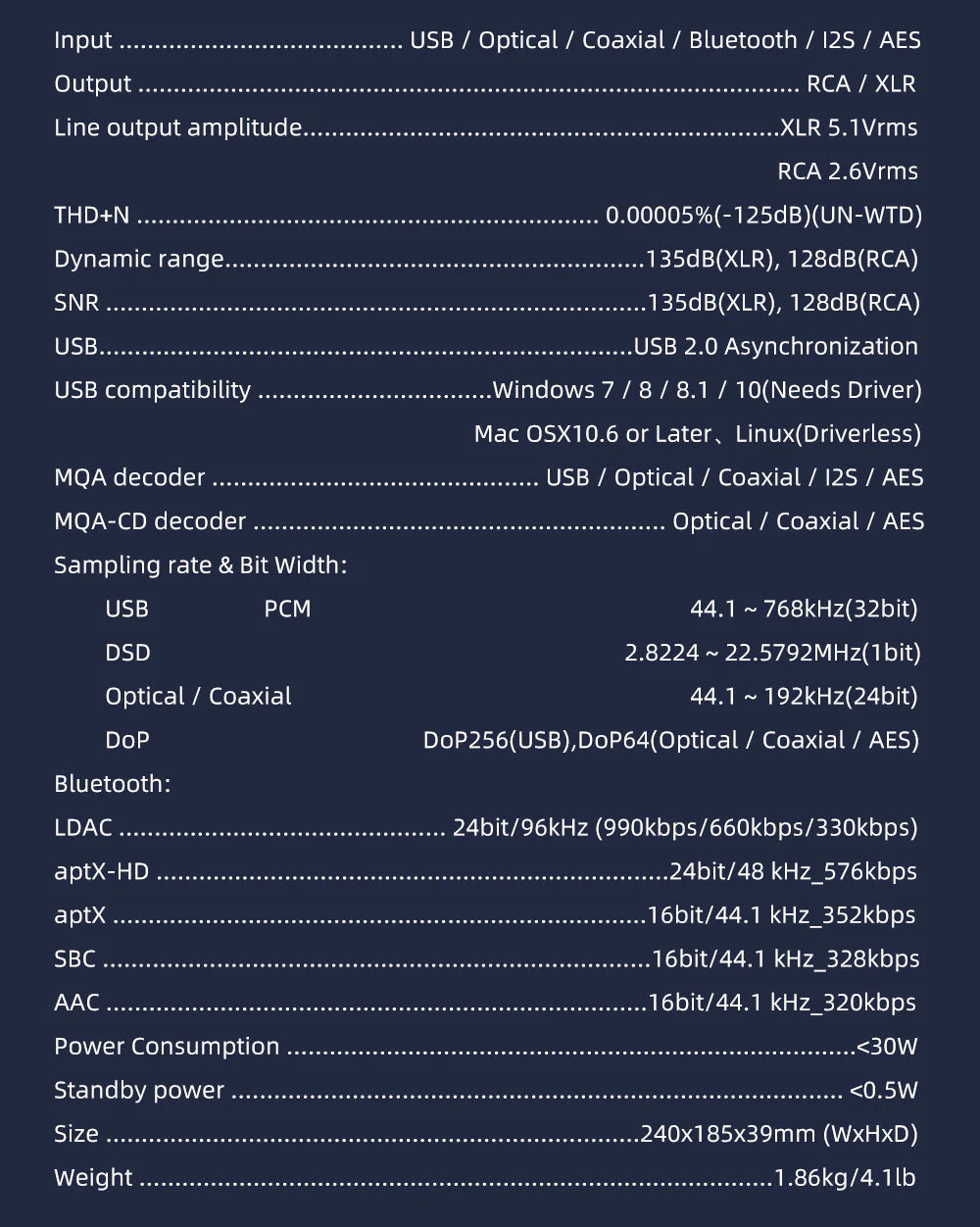

Specs

• Inputs: USB, optical, coaxial, Bluetooth, I2S, AES
• Outputs: RCA, XLR
• Line output amplitude
• XLR: 5.1Vrms
• RCA: 2.6Vrms
• THD+N: 0.00005%

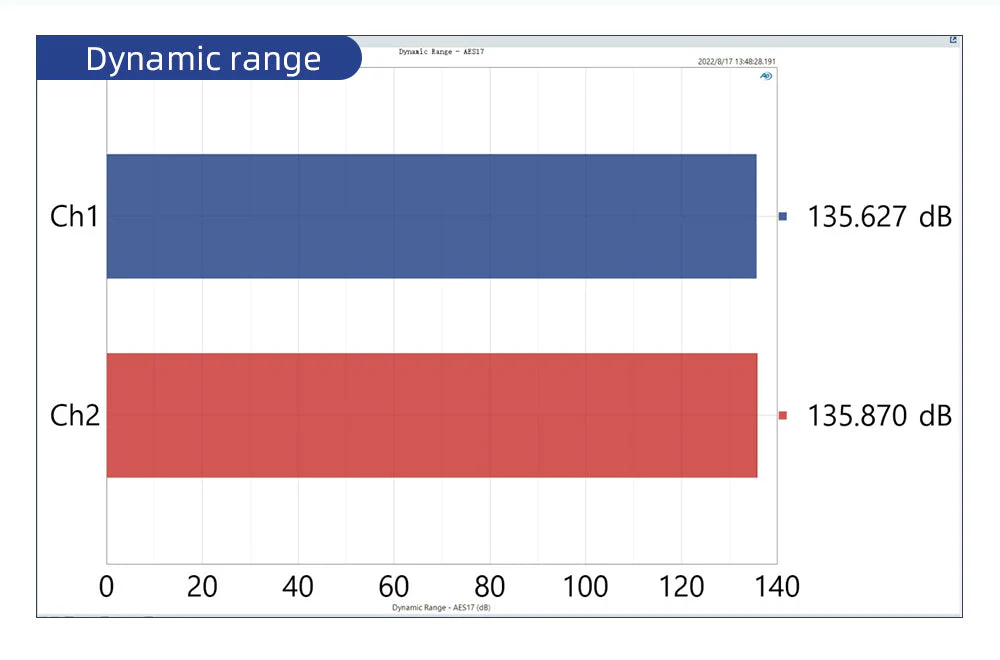

• Dynamic range
• XLR: 135dB
• RCA: 128dB
• SNR
• XLR: 135dB
• RCA: 128dB
• USB: 2.0 asynchronization
• USB compatibility: Windows 7/8/8.1/10 (needs driver), Mac OSX 10.6 or later, Linux
• MQA decoder: USB, optical, coaxial, I2S, AES
• MQA-CD decoder: Optical, coaxial, AES
• PCM filters: fast linear, slow linear, fast minimum, slow minimum, apodizing, fast hybrid, brickwall
• Sound color settings: Rich1, Rich2, Rich3, Tube1, Tube2, Tube3, Crystal1, Crystal2, Crystal3
• Sampling rate and bit width
• USB
• PCB: 44.1 - 768kHz (32bit)
• DSD: 2.8224 - 22.5792MHz (1bit)
• Optical/coaxial: 44.1 - 192kHz (24bit)
• DoP: DoP256 (USB), DoP64 (Optical/coaxial/AES)
• Bluetooth
• LDAC: 24bit/96kHz (990kbps/660kbps/330kbps)
• aptX-HD: 24bit/ 48kHz_576kbps
• aptX: 16bit/44.1kHz_352kbps
• SBC: 16bit/44.1kHz_328kbps
• AAC: 16bit/44.1kHz_320kbps
• Power consumption: <30W
• Standby power: <0.5W
• Size: 9.4” x 7.2” x 1.5” (240mm x 185mm x 39mm)
• Weight: 4.1lbs (1.86kg)
