The evolution of a classic

The TOPPING DX3 Pro+ DAC/Amp is TOPPING’s upgrade of their classic DX3 Pro. With a new Bluetooth chip and DAC chip, the Pro+ outperforms its predecessor while also coming in at a lower price point. The Pro+ has 60% lower THD+N (DAC), 85% lower THD+N (HPA), over 100% more power, and 90% lower output impedance than the DX3 Pro (LDAC version).

Bluetooth 5.0 LDAC

Hi-Res Audio Wireless and LDAC are supported with a Qualcomm QCC5152 chip. Unlike other DACs that decode Bluetooth codecs with the Bluetooth chip, the DX3 Pro+ uses the ESS ES9038Q2M chip for decoding for even better performance.

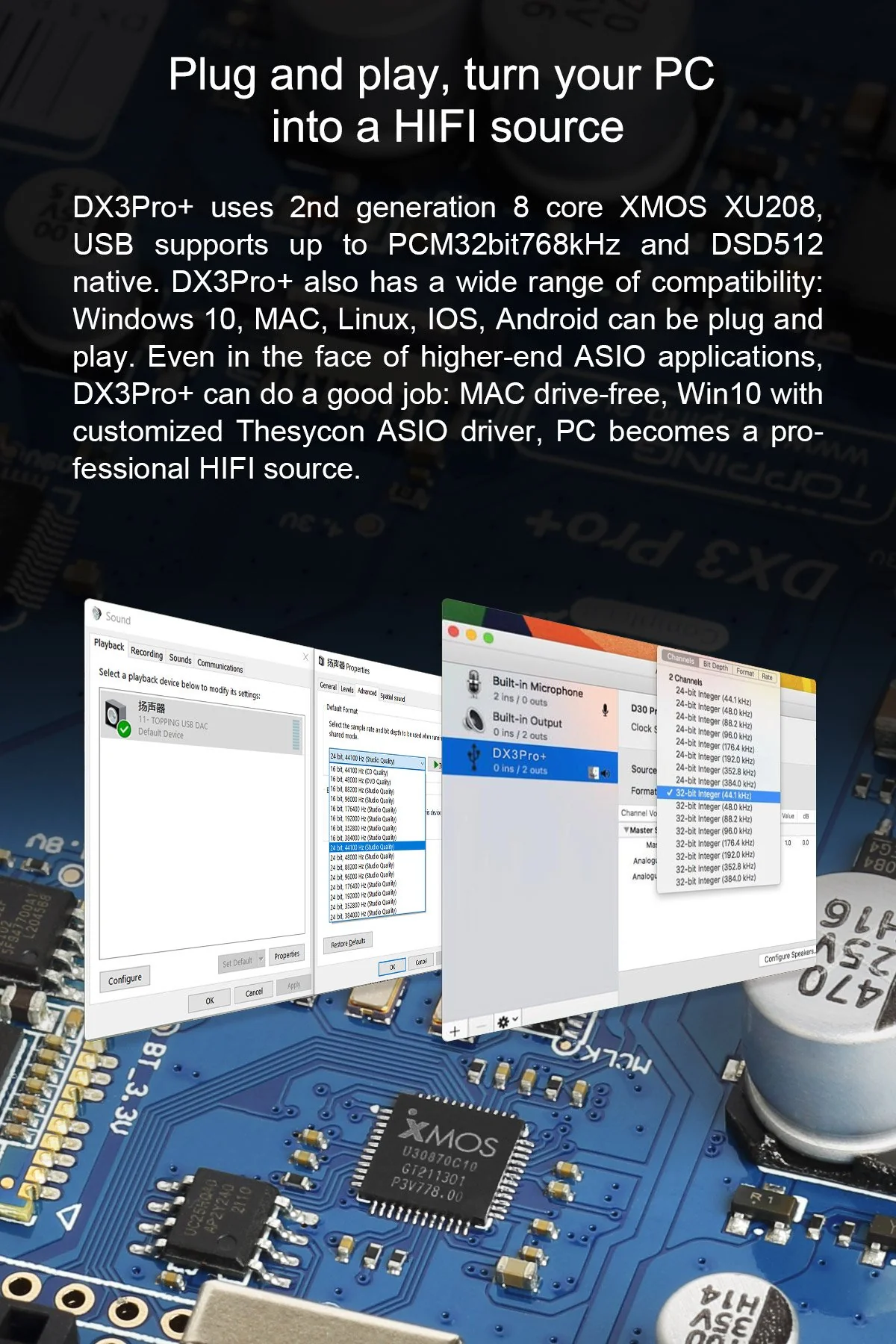

Plug and play

Simply plug the DX3 Pro+ via USB into your PC or Mac to enjoy all the benefits of a high-end DAC without the need for drivers. Only higher-end ASIO applications on Windows 10 require a driver.

Low noise NFCA circuit

An optimized NFCA circuit provides powerful, distortion-free performance: 1800mWx2 @32Ω, 0.00015% THD+N.

High/low gain settings

Two gain settings (+6dB/+19dB) make it easy to adjust for the varying impedances of IEMs and full-sized headphones.

Four output modes

Adapt to every listening situation with the DX3 Pro+’s four output modes: headphone amp, headphone amp + DAC, DAC, and preamplifier.

Product highlights

• ESS ES9038Q2M DAC chip
• LDAC audio
• THD+N: 0.00015%
• DSD512
• PCM768kHz
• XMOS XU208
• Built-in NFC headphone amp
• Remote control

Specs

• Bluetooth 5.0: Qualcomm’s QCC5125 Chip
• Decoding Chip: ES9038Q2M
• USB In
• PCM: 44.1kHz-768kHz / 16bit-32bit
• DSD (Native): DSD64-DSD512
• DSD (DoP): DSD64-DSD256
• COAX / OPT in
• PCM: 44.1kHz-192kHz / 16bit-24bit
• DSD (Native): Not Supported
• DSD (DoP): DSD64
• Bluetooth In
• PCM: AAX, SBC, aptX, aptX LL, aptX HD, LDAC
• DSD (Native): Not Supported
• DSD (DoP): Not Supported
• THD+N @1kHz (A-wt): <0.00015%
• THD @20-200kHz (90kBW): <0.00020%
• SNR: 122dB
• DNR: 122dB

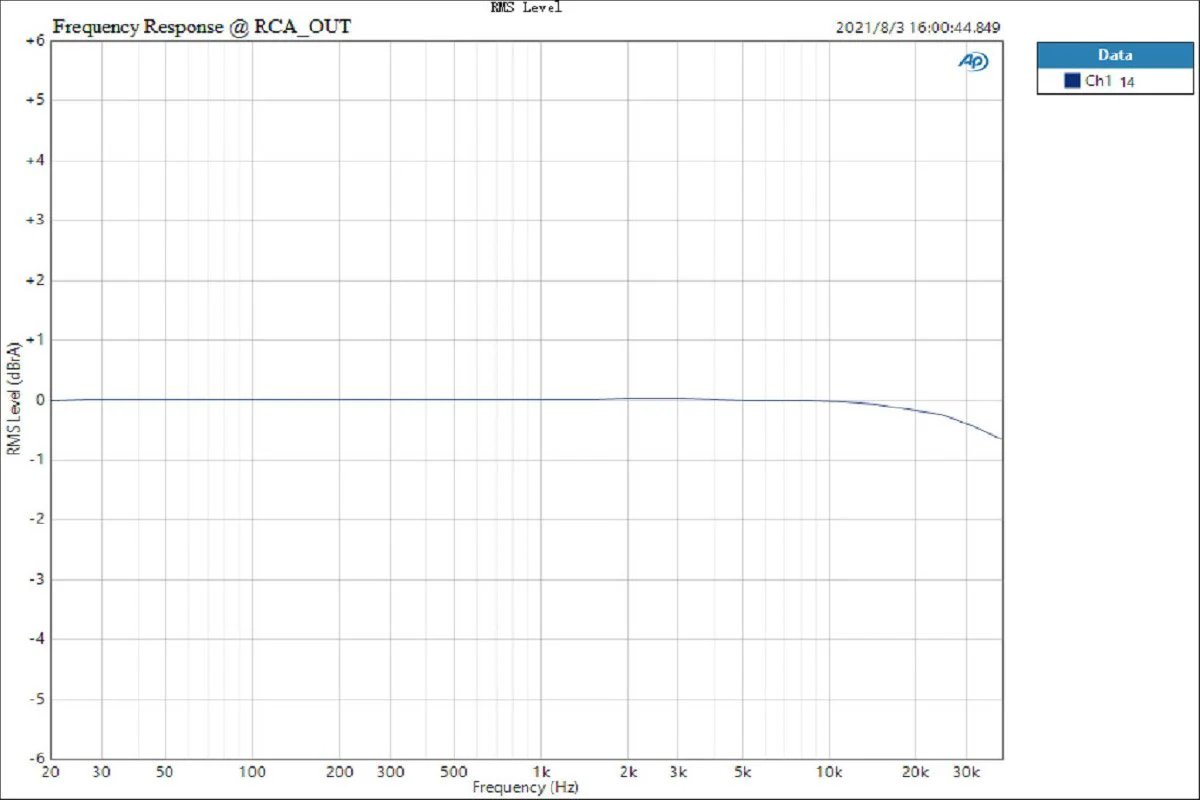

• Frequency response
• 20Hz-20kHz (±0.3dB)
• 20Hz-40kHz (±0.7dB)
• Output level: 2.1Vrms @0dBFS
• Noise (A-wt): <1.8uVrms
• Channel crosstalk @1kHz: -137dB
• Channel balance: 0.3dB
• Output impedance: 20Ω

DX3 Pro+ Headphone Amplifier Specs

• THD+N @1kHz (A-wt)
• <0.00015% @Output=1500mW (32Ω)
• <0.00013% @Output=160mW (300Ω)
• THD @20-200kHz (90kBW)
• <0.0005% @Output=1500mW (32Ω)
• <0.0005% @Output=160mW (300Ω)
• SNR: 120dB
• DNR: 120dB
• Frequency response
• 20Hz-20kHz (±0.3dB)
• 20Hz-40kHz (±0.7dB)
• Output level
• 5.5Vpp @G=L
• 21.5Vpp @G=H
• Noise (A-wt)
• <2.1uVrms @G=L
• <7.0uVrms @G=H
• Channel crosstalk @1kHz: -90dB
• Gain
• 6dB (Vrms/FS) @G=L
• 19dB (Vrms/FS) @G=H
• Output impedance: <0.1Ω
• Output power
• 1800mW x2 @32Ω THD+N <0.1%
• 900mW x2 @64Ω THD+N <0.1%
• 250mW x2 @300Ω THD+N <0.1%
• Adapter impedance: >8Ω
• Dimensions: 6.5” x 4.7” x 1.5” (16.5 x 12 x 4 cm)

What’s included

• DX3 Pro+
• DC 15V / 1 A Power Adapter
• Remote Control
• Bluetooth Antenna
• USB Cable
• User manual
• Warranty card
