xDuoo Link2 Bal Max Portable Balanced DAC/Amp
From desktop to destination
The xDuoo Link2 Bal Max is a DAC/Amp you can take anywhere, whether that's your workdesk or an exotic destination. Its true balance design puts out loads of power while keeping crosstalk and noise as low as a dedicated desktop rig. And with a USB Type-C port, it can be used with next-gen tablets and the Nintendo Switch.
What’s new in the Max?
The xDuoo Link 2 Bal Max is the successor of the Link 2 Bal. In this version, xDuoo introduces better signal-to-noise ratio, more single-ended output power, and better crosstalk performance. The result is a portable DAC/Amp that’s closer than ever to giving a desktop rig a run for its money.
True balanced decoding
Each audio channel is separately decoded with its own Cirrus CS43131 D/A chip, providing higher resolution, greater signal-to-noise ratio, and less crosstalk than non-balanced decoding architectures.
Music, movies, gaming, and more
Listen to hi-res music from a laptop, take movie night to the next level with hi-fi sound, or up the Nintendo Switch’s audio game. The Link2 Bal Max’s USB Type-C port has you covered in every situation.
Seamless chassis

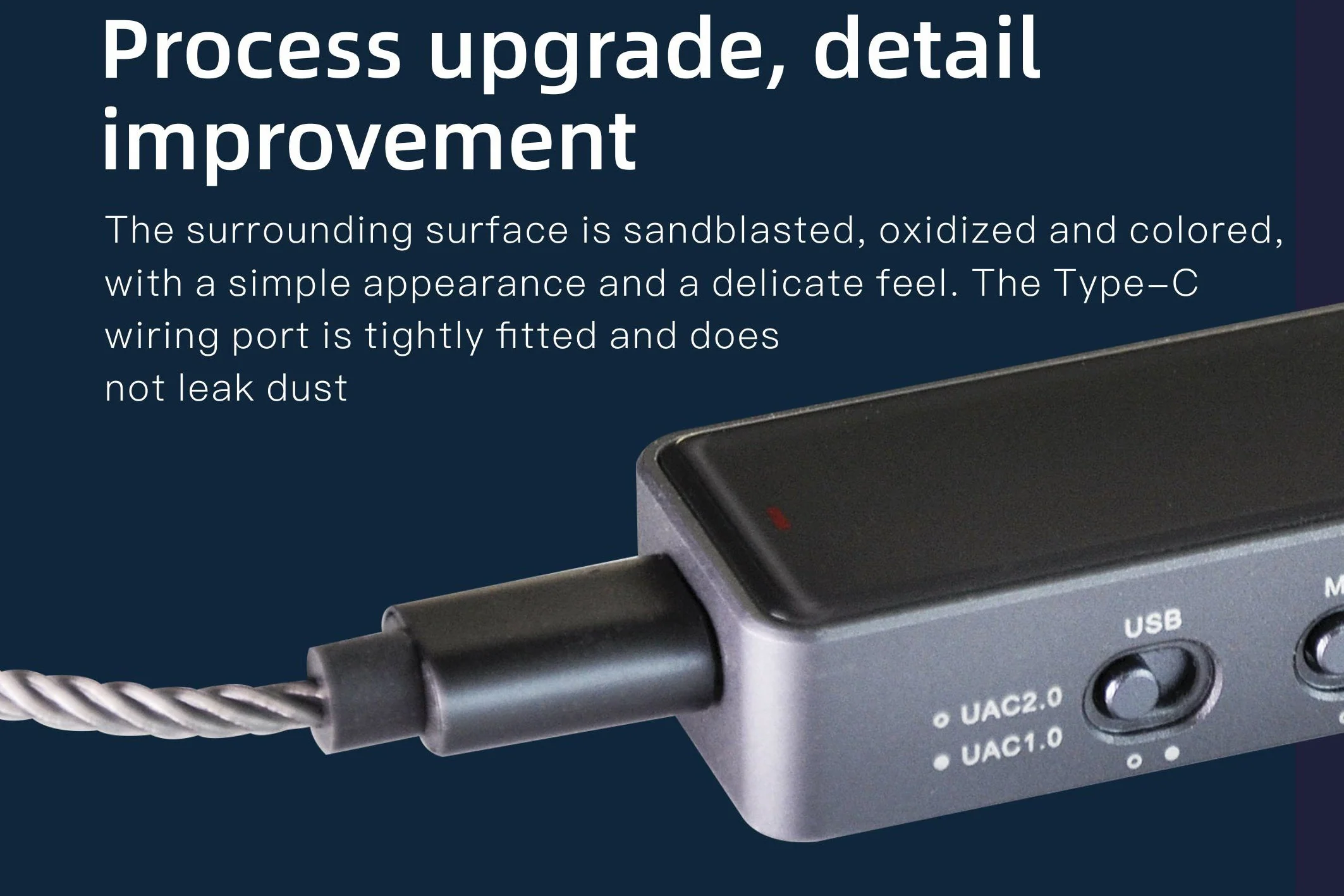

With 2.5D double-sided glass and full-body CNC processed aluminum, the Link 2 Bal Max has a singular chassis with no seams or screws.
Be sure of your sound
The Link2 Bal Max’s LED light will change colors with the sample rate of the song: red for CD-quality PCM, blue for super-CD quality PCM, and green for DSD.
Product highlights
- True balanced decoding
- Dual DAC chips: CS43131
- 270mW output power
- 4.4 + 3.5 outputs
- SNR 127dB
- Native DSD256
- USB Type-C
- Multi-platform uses: laptop, tablet, iPhone, Android, Nintendo Switch
- LED sample rate indicator
- CNC processed body–no seams or screws
Specs
- DAC chip: CS43131 x 2
- Input port: USB Type-C
- Output ports: 3.5mm, 4.4mm

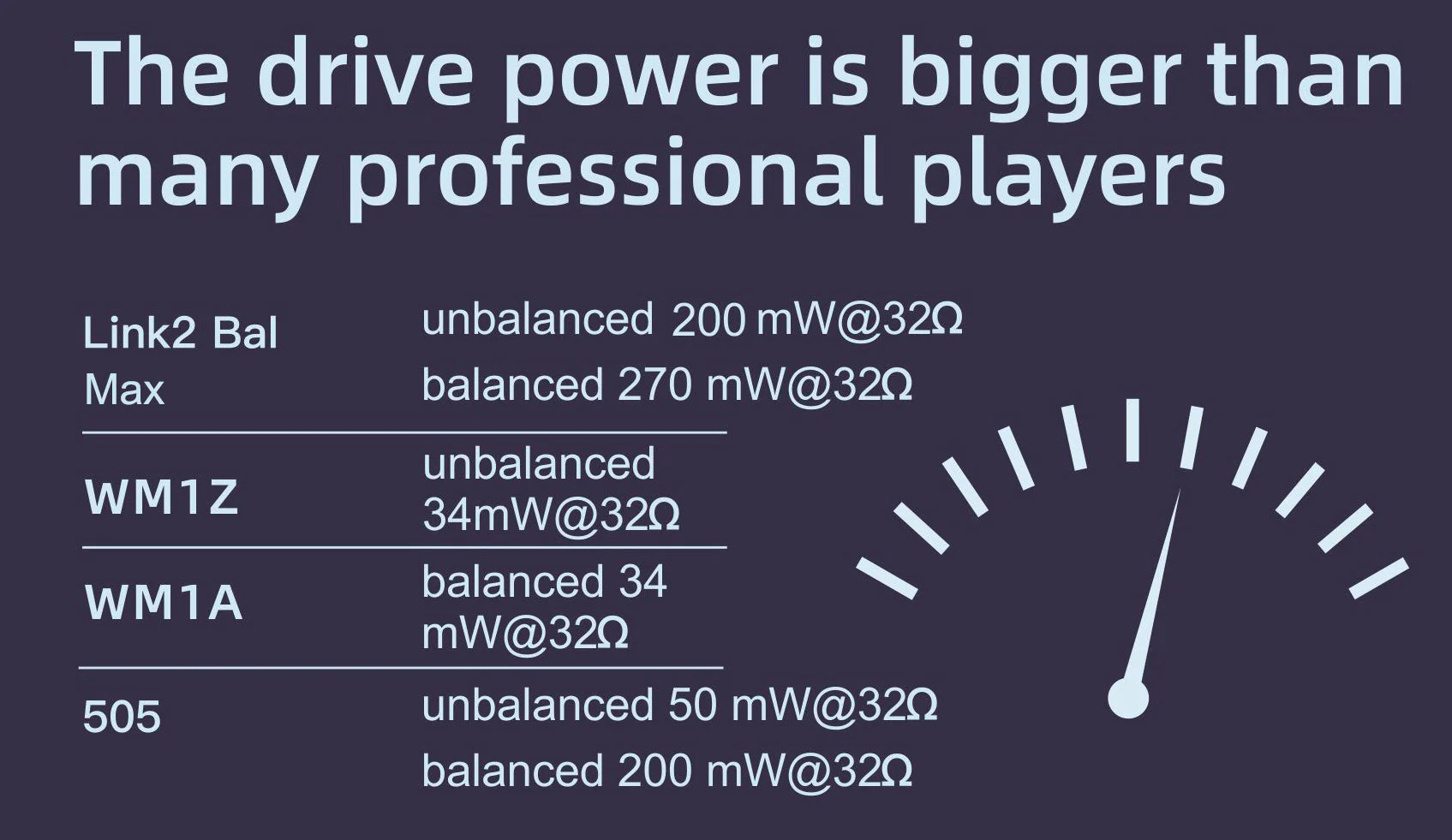

- Output power
- 3.5mm: 200mW @32Ω
- 4.4m: 270mW @32Ω
- Sample rate support
- PCM: 16-32bit/44.1-384kHz
- DSD: DSD64-256
- Frequency response: 20Hz-20kHz (±0.5dB)
- THD+N
- 0.001% @1kHz (3.5 headphone amp)
- 0.0007% @1kHz (4.4mm headphone amp)
- SNR
- 124dB (3.5mm)
- 128dB (4.4mm)
- Crosstalk
- ≥79dB (3.5mm)
- ≥122dB (4.4mm)
- Weight: 0.9oz (28g)
- Size: 2.4” x 0.92” x 0.5” (63mm x 23.5mm x 13mm)
What’s included
- xDuoo Link2 Bal Max DAC/Amp
- Manual
- Warranty card
- Lightning cord
- USB Type-C cord
Original: $149.00
-70%$149.00
$44.70Product Information
